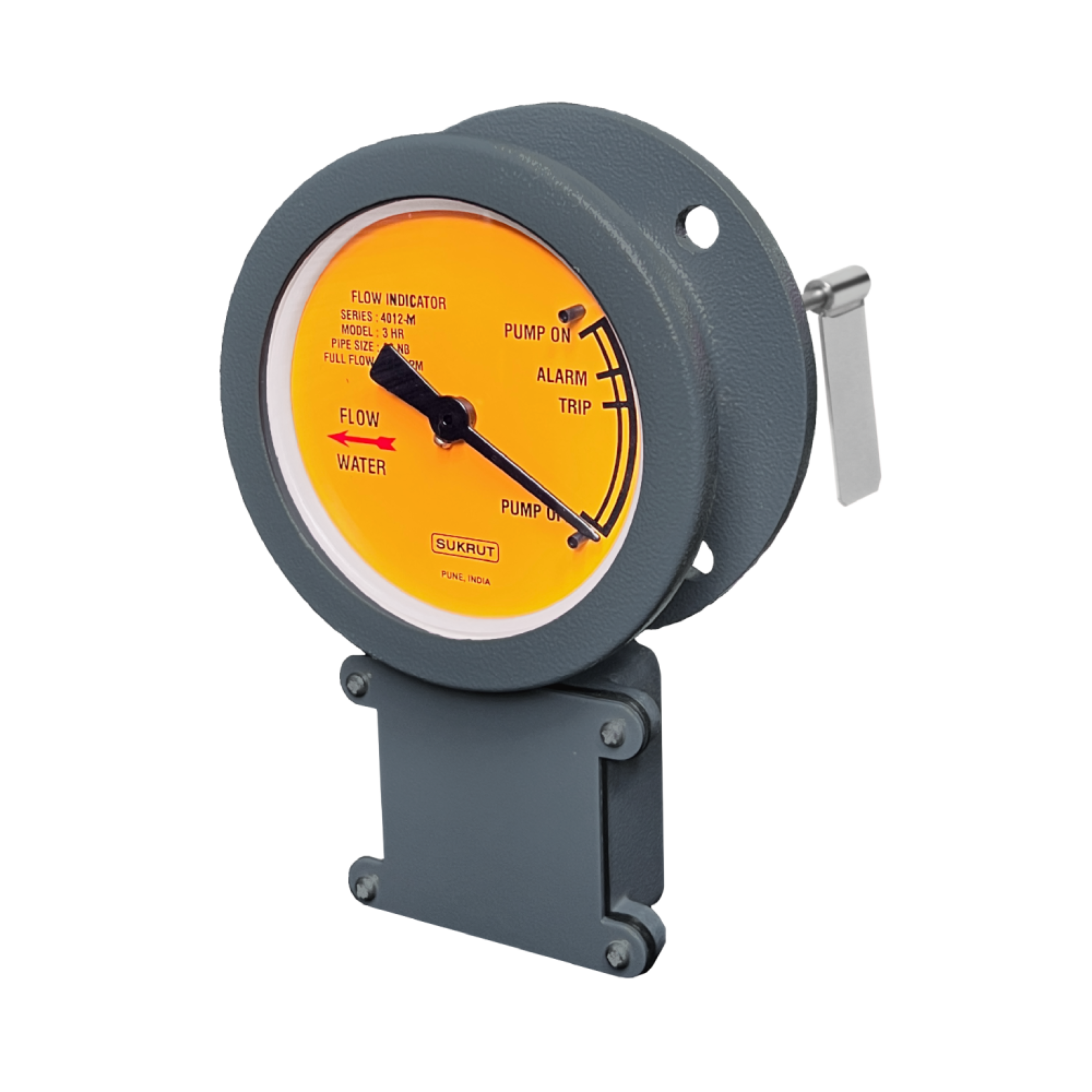

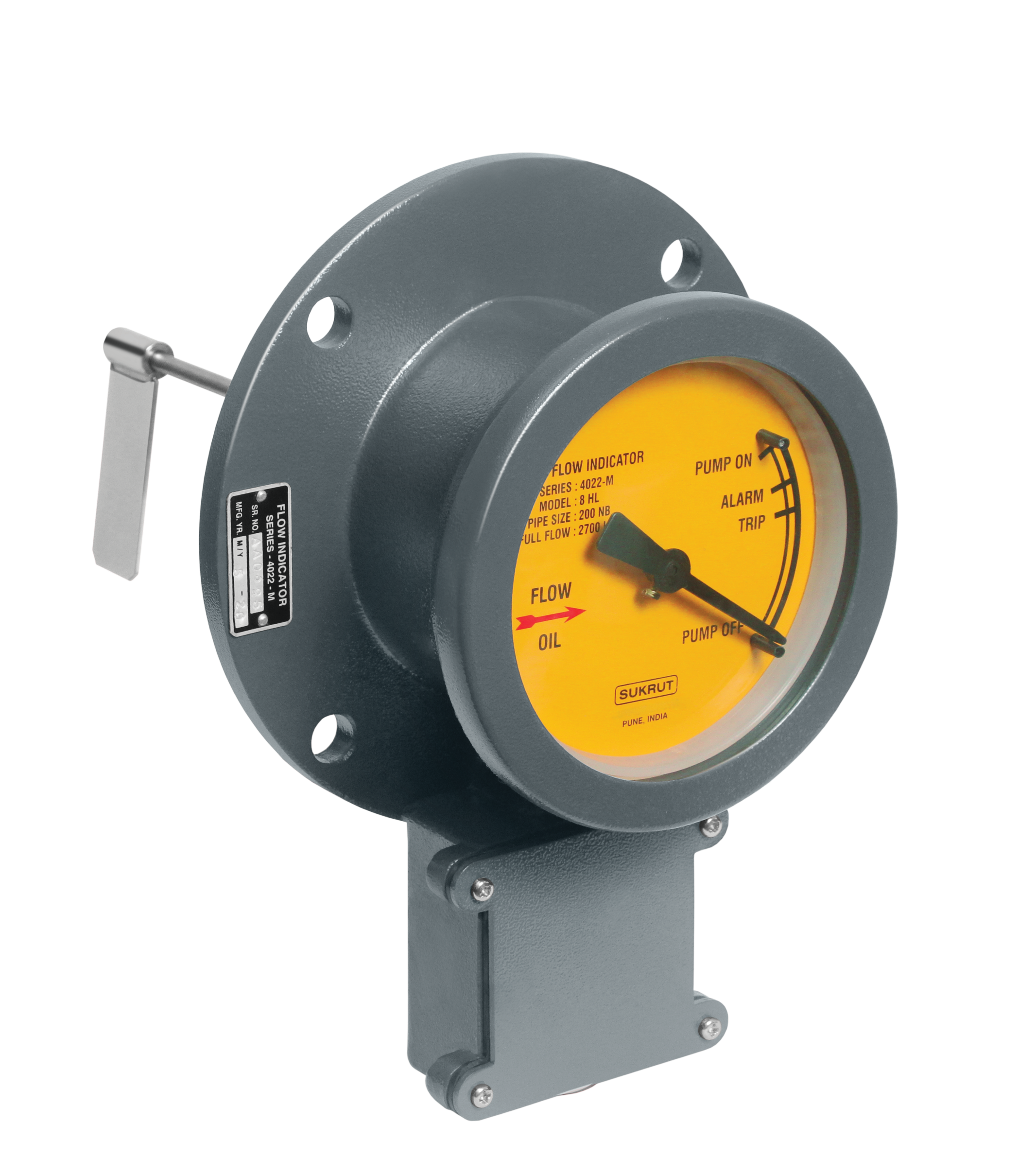

Flow Indicator

Flow Indicator is mainly designed as a safety device considering the need for an electrical signal on the failure of forced circulation of liquid in the pipeline.

1. LIQUID IN PIPE

Water (WFI) OR Transformer Oil (OFI).

2. MOUNTING (PIPE SIZE)

  • Size: Round dial 100 MM (4”)
  • Dial colour: Black marking on yellow / white background
  • Spread of dial: 70 degrees

3. SWITCH

  • No. of switches: 1 or 2 max
  • 1 switch for low flow at 70% of full flow
  • 2 switches for low flow at 80% & 70% of full flow
  • Setting of switch: Normally open at full flow & closes when rate of flow drops OR as per the requirement

4. SPARES & ACCESSORIES

  • Plug Socket
  • Armored Cable

5. GENERAL INFO

  • For suitable model selection, the customer must provide detailed specifications which include: liquid in pipe, size of pipe, rate of full flow & direction of flow required
  • FI with different specifications are not interchangeable
  • IP-67 Ingress Protection
  • C4-M Corrosion Resistance

Note: For more details send online enquiry

Product Name Dial Size Download
402X Series 4 Inch Download Brochure
